Product Description

• 1.It is suitable for transporting unit goods and have limitations on the size of materials.

• 2.They offer the option to select the operating direction and can be used in conjunction with entrance and exit conveyor equipment, enabling automated transportation and eliminating the instability associated with manual operations.

• 3.These systems have a compact structure and occupy minimal floor space. They are safe, reliable, easy to maintain and have low operating costs, effectively reducing transportation expenses.

• 4.It is recommended that the weight of individual items be less than 80kg, with a total load capacity of less than 1000kg.

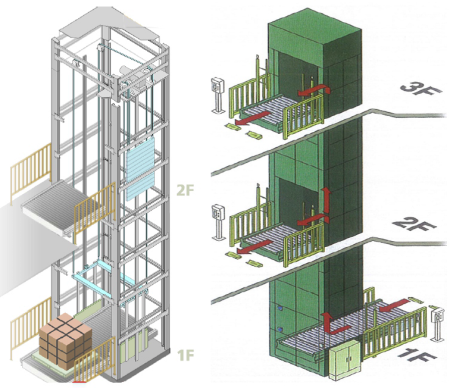

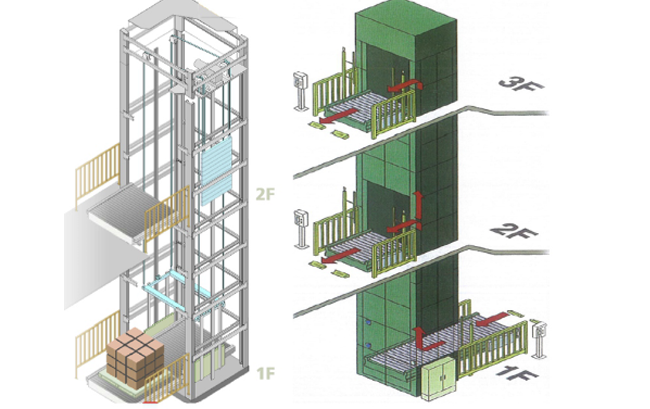

• 5.The conveying speed should be ＜ 35m, and the work cycleshould be equal to or greater than 4seconds.Vertical conveyor systems come in variousforms such as "Z"-shaped, "C"-shaped, and "E"-shaped.

• 6.The decorative and security materials used can include aluminum profiles with sunlight or steel plates, aluminum mesh, etc.

• 7.These systems are suitable for vertical transportation of finished goods in industries suchas home appliances, food,pharmaceuticals, tobacco, coatings, and chemicals.
